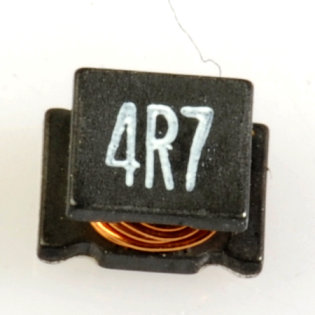

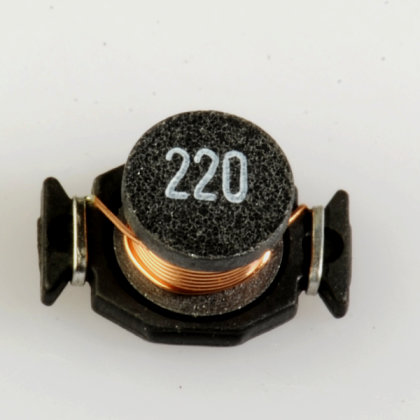

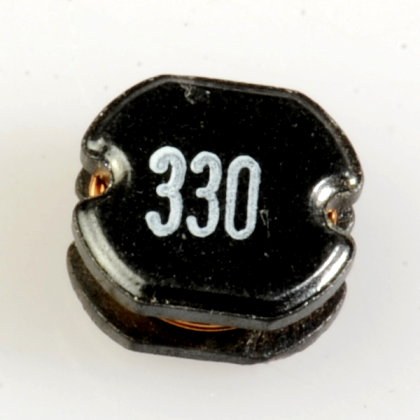

Ferrite SMD Unshielded Type

Miniaturized SMD packaged...

Product Number Dimensions
(mm)
Inductance Range(uH) Rdc Range
(Ω)
Rated Current
(A)
MSCD-0311
3.5x3.0x1.1 1.0~100 0.085~6.6 0.1~1.5
MSCD-0315
3.5x3.0x1.5 1.0~470 62m~18.2 0.09~1.6
MSCD-32
3.3x3.0x2.1 0.47~1000 17.7m~28.8 0.05~3.0
MSCD-43
4.5x4.0x3.2 1.0~470 48.7m~7.0 0.11~2.7
MSCD-52
5.8x5.2x2.5 0.25~1000 5.3m~9.87 0.05~7.5
MSCD-53
5.8x5.2x3.0 1.0~1000 30m~8.0 0.13~4.5
MSCD-54
5.8x5.2x4.5 0.47~2200 16m~12.9 50m~4.5
MSCD-73
7.8x7.2x4.0 1.0~470 10m~3.0 0.25~4.6
MSCD-75
7.8x7.0x5.0 1.0~470 20m~1.96 0.34~6.3
MSCD-104
10.0x9.0x4.0 10~560 53m~1.904 0.32~2.38
MSCD-105
10.0x9.0x5.4 3.3~1000 15m~2.8 0.22~5.0
MSCD-106
10.0x9.0x7.5 10~1000 60m~3.0 0.46~3.5
MSCD-108
10.0x9.0x8.5 6.8~1000 33.7m~1.74 0.48~4.3
MSCH-2015C
2.0x1.5x1.7 1.0~22 0.26~3.77 0.1~0.65
MSCH-3216C
3.2x1.6x1.8 0.12~100 0.112~15.6 80m~0.97
MSCH-3225C
3.2x2.5x2.0 0.5~560 60m~30 60m~1.0
MSCH-4532C
4.5x3.2x2.6 1~2000 80m~55 30m~1.08
MSCH-5750C
5.7x5.0x4.7 0.12~10000 9.8m~140 50m~6.0
MSCDB-0603
6.6x4.45x2.92 0.47~1000 20m~13.8 0.1~4.0
MSCDB-1303
13.5x9.5x3.2 2.2~1000 30m~7.0 0.1~3.8
MSCDB-1305
13.5x9.5x5.5 1.0~1500 9m~4.49 0.29~9.0
MSCDB-1311
13.5x9.5x11.5 1.0~1000 8m~2.0 0.8~16.0
MSCDB-1807
18.5x15.5x7.5 1.0~3300 11m~7.0 0.5~20
MSCDB-0905H
9.0x6.1x5.2 0.18~100 5.0m~1.11 0.47~9.0
MSCDB-1305H
13.2x9.95x6.35 0.33~330 2.0m~0.977 0.76~16.0
MSCDB-1807H
19.4x13.3x6.8 4.7~68 12m~0.156 1.6~6.5
MSCDB-2206H
22.3x16.2x7.4 0.8~1000 2.76m~1.8 1.0~35
