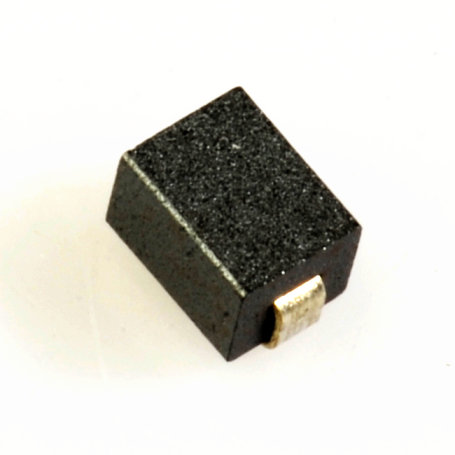

Wire wound chip Type

Miniaturized SMD packaged in low profile and lightweight.

Product Number Dimensions(mm) Inductance Range Rdc Range(Ω) Rated Current(A)

MHSC-0402C

1.0x0.55x0.5 1.0nH~120nH 0.045~2.66 0.05~1.36

MHSC-1608C

1.65x1.05x0.82 1.6nH~470nH 0.030~4.0 0.08~0.70

MHSC-2012C

2.2x1.45x1.3 2.2nH~2700nH 0.05~3.8 0.16~0.80

MHSC-2520C

2.9x2.54x2.03 4.7nH~10000uH 0.065~8.0 0.15~1.0

MHQC-2520C

2.9x2.54x2.03 4.1nH~390nH 0.05~0.62 0.9~1.6

MLCF-161008

1.8x1.2x1.1 0.047uH~10uH 0.075~4.46 0.25~1.6

MLSF-201212

2.4x1.65x1.2 0.10uH~47uH 0.1~13.1 0.06~1.7

MLCD-201212

2.4x1.65x1.2 0.10uH~220uH 0.07~23.1 0.07~2.4

MLSF-252018

2.90x2.54x2.03 0.22uH~100uH 0.4~19.60 0.064~0.88

MLCF-252018

2.90x2.54x2.03 0.39uH~47uH 0.20~7.8 0.1~2.4

MLSF-322522

3.6x2.9x2.5 0.39uH~220uH 0.3~12.48 0.025~1.5

MLCF-322522

3.6x2.9x2.4 1.0uH~680uH 0.125~31.0 0.03~2.6

SMB-403025

4.0x3.0x2.54 30~47 0.6m -

SMB-853025

8.5x3.1x2.54 60~90 0.9m -
